Single Acting Telescopic Hydraulic Cylinder Agricultural Hydraulic Rams

Name: Single Acting Telescopic Hydraulic Cylinder Agricultural Hydraulic Rams
Brand: Guoyue
Price: 1 USD

Quality Single Acting Telescopic Hydraulic Cylinder Agricultural Hydraulic Rams for sale

Warranty : 1 Year

Showroom Location : not have

Brand Name : Guoyue

Place of Origin : China

Pressure : customized

Structure : T

Weight : 80

Power : 25MPa

Dimension(L*W*H) : 780*170*170mm

Rod Diameter : 70mm

Maximum Stroke : customized

Outer Tube Diameter : 125mm

Inner Tube Diameter : 100mm

Overall Length : customized

Type : Single Acting Cylinder

Material : Steel, Customized

Surface Treatment Of Piston Rod : hard chrome plated

For Pipe Size : customized

Product name : Hydraulic Cylinder

Usage : Metallurgical industry machinery

MOQ : 1 piece

Price : USD1,000-10000/pieces

Certification : CE

Model Number : customized

Packaging Details : Standard Export Package

Delivery Time : 12~60 days depends on products type

Payment Terms : T/T

Supply Ability : 2500 Ton/Tons Per Year

Working Medium : hydraulic oil

Technique : Forging&Casting

Minimum Oeder Quantity : 1PCS

Certifications : CE

Piston Seal : urethane seal

Seals : Chinese

Ship Cost : not include

Contact Now

Single Acting Telescopic Hydraulic Cylinder Agricultural Hydraulic Rams

Application	Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc.
Seal	Parker, Merkel, NOK, Hallite,etc.
Paint	Red, Grey, Yellow, Black, etc.
Material	St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc.
Certificate	ABS, Lloyds, SGS, etc.
Package	Bubble-wrap packing, then in wooden case.
Color	choose the color according to customer requirement
Core components	Bearing，Pressure vessel，Pump
Is it a standard part？	Nonstandard
Structure	Piston Type, Plunger Type, Telescopic Type,
Power	Hydraulic & Pneumatic
Brand	Guoyue
Sample	Available

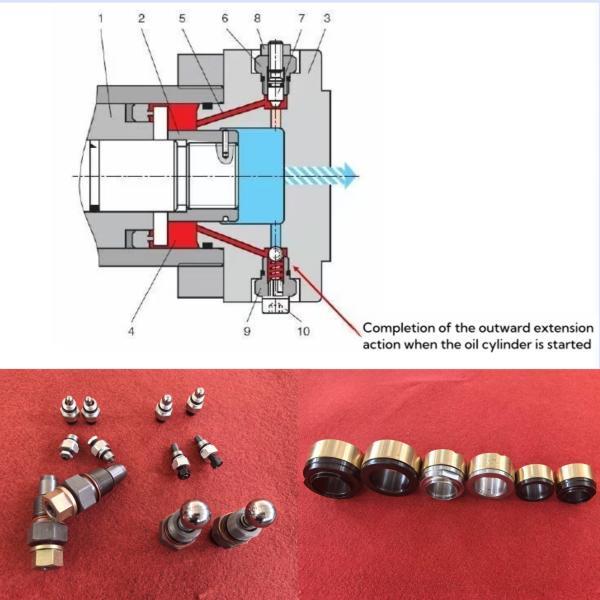

Buffer plunger: generally installed at the end of the piston rod or cylinder head of the oil cylinder. When the oil cylinder reaches the end of its stroke, the buffer plunger first enters the buffer chamber.

Buffer chamber: It is a specially designed space connected to the working chamber of the oil cylinder. When the buffer plunger enters the buffer chamber, it compresses the oil inside the buffer chamber, thereby generating a buffering force. Throttle hole: set between the buffer chamber and the working chamber, or on the buffer plunger. The size and number of throttle holes can adjust the magnitude and buffering effect of the buffering force.

High power density

Hydraulic cylinders can provide greater force within a smaller volume, as hydraulic systems can increase force by increasing pressure without the need to increase volume.

High reliability

Due to the lack of mechanical connections, hydraulic cylinders have no friction or wear, high operational reliability, and long service life.

High precision control

Hydraulic cylinders can achieve high-precision motion control, as hydraulic systems can precisely control the position and speed of the cylinders by adjusting pressure and flow.

Stable motion

The movement of hydraulic cylinders is smooth, without any impact or vibration. Through fluid transmission of force, the characteristics of the fluid make the movement of the cylinders smoother.

Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co.. Ltd., with aregistered capital of 50 million yuan, is a private technology enterprise thatintegrates research, design, development, production, operation, and service.The company specializes in the production of hydraulic systems, hydrauliccylinders, hydraulic pipeline accessories, non-standard mechanical parts, andvalve components. The company emphasizes strict quality control, with eachproduction process following standardized operating procedures, andcomprehensive management systems in place to ensure that every product isprocessed to perfection.

The company's core industries are the design, production, and manufacturing ofvarious specifications of hydraulic systems and cylinders, as well as the mainbusiness of non-standard mechanical parts, The company has introduced andabsorbed advanced hydraulic product design and production technologies fromGermany and other European and American countries, ensuring that its designand manufacturing capabilities are consistently aligned with internationaladvanced hydraulic cylinder technology. These products are widely used inindustries such as metallurgy, engineering, mining, petroleum, ports,automobiles,chemicals, construction, and defense.

The company possesses advanced multifunctional testing and inspectionequipment and is capable of undertaking testing and maintenance of varioushydraulic cylinders, hydraulic oil pumps, hydraulic motors, and hydraulic valvelocks. it has provided excellent hydraulic products and non-standard mechanicalspare parts to more than 30 enterprises nationwide, receiving high praise andrecognition from users in relevant industries.

Certificate of quality management system certification

Certificate of occupational health and safety management system certification

Certificate of environment management system certification

SGS Product Testing Report

Utility Model Patent Certificate—— A new type of dust prevention structure for AGC oil cylinder

Utility Model Patent Certificate——

A hydraulic cylinder installation mechanism

1. who are we?
We are based in Jiangsu, China, start from 2022,sell to Domestic Market(40.00%),Africa(10.00%),North America(10.00%),South
America(8.00%),Southeast Asia(6.00%),Western Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Central America(5.00%),Eastern
Asia(2.00%),Oceania(2.00%),Northern Europe(1.00%),South Asia(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
hydraulic cylinder,hydraulic cylinder,Single-acting hydraulic cylinder,Double-acting hydraulic cylinder,construction machinery
hydraulic cylinder

4. why should you buy from us not from other suppliers?
Guoyue Hydraulic Equipment Manufacturing (Jiangsu) Co., Ltd., with a registered capital of 50 million yuan, is a private
technology enterprise that integrates research, design, development, production, operation, and service. The company specializes
in the

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
